Diamond Blades for Contec CT320 / CT340 Planers
£194.00 Exc VAT
Diamond blades for Contec CT320 and CT340 planers, designed for concrete planing, grooving, and joint preparation. Suitable for hard concrete, surface removal, and industrial floor repair applications.
Diamond Blades for Contec CT320 / CT340 Planers
Diamond blades designed for Contec CT320 and CT340 planers, built for controlled concrete removal, grooving, and surface preparation. Engineered for consistent cutting performance on hard concrete, abrasive aggregates, and industrial floors.
Key Features
- Designed specifically for Contec CT320 & CT340 planers
- Suitable for concrete planing, grooving, and surface removal
- Performs effectively on hard aggregates and high-strength concrete
- Delivers controlled material removal with consistent finish
- Available in configurations to suit different cutting widths and applications
Applications
- Concrete surface preparation
- Coating and laitance removal
- Floor levelling prior to grinding
- Grooving for slip resistance
Finished grooved concrete surface for improved slip resistance
- Joint cleanout and repair preparation
- Preparation for armoured and heavy-duty joint systems
Blade Specification & Performance
- Diameter: 300mm
- Segment Configuration: 20 segments
- Segment Size: 32 x 7 x 15 mm
- Rotation: Available in left and right rotation (ROT 9°)

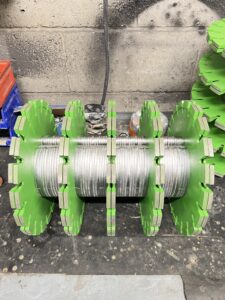

CT320 grooving drum setup showing blade spacing and configuration
Why Rotation Matters
Blades are available in opposing rotation patterns, allowing them to be configured across the drum to:
- Reduce load on the machine
- Improve cutting stability and balance
- Increase cutting efficiency under load
- Reduce vibration and uneven wear
Using mixed rotation setups helps distribute forces more evenly across the drum, improving both performance and blade life—especially on harder concrete and deep cutting applications.
Engineer note
On CT320 / CT340 machines, incorrect blade setup is one of the biggest causes of poor performance. Running a single rotation or incorrect spacing can overload the machine, reduce cutting efficiency, and accelerate wear. A balanced drum setup with opposing rotation blades significantly improves overall performance.
Deep Joint Cleanout & Repair Preparation
Diamond blades for Contec CT320 and CT340 planers are commonly used for removal of deep, wide joints and failed joint systems prior to repair.
- Suitable for wide movement joints and construction joints
- Effective for removing:
- Failed sealants
- Resin systems (e.g. heavy-duty joint fillers)
- Contaminated or broken edges
- Allows full-width cleanout, not just centre cutting
- Ideal where joint saws are too narrow or inefficient for bulk removal

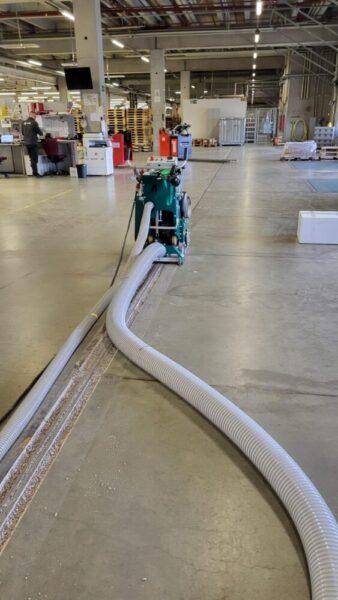

Joint preparation using CT320 planer with dust extraction system

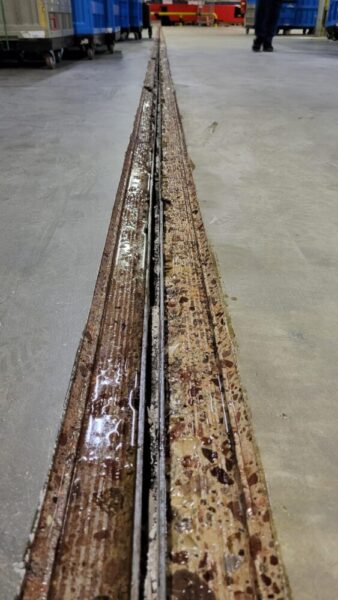

Deep joint cleanout showing full-depth preparation prior to repair
Preparation for Armoured & Heavy-Duty Joint Systems
These blades are widely used to prepare concrete floors for new joint installation systems, including armoured and interlocking joint profiles.
- Used to remove existing joints and open the full channel
- Prepares floors for:
- Armoured (armored) joint systems
- Heavy-duty industrial floor repairs
- High-traffic warehouse environments
- Ensures proper bonding and long-term performance of new joint systems
Engineer Insight
Blade selection and setup are critical on CT320 / CT340 machines. Incorrect spacing or bond type can lead to rapid wear or poor cutting efficiency, particularly on hard concrete or where steel edges are present.
On deep or wide joints, a planer setup allows full-width removal and consistent depth, ensuring proper preparation before repair systems are installed.
Important
These blades are designed for bulk removal, surface preparation, and joint cleanout prior to repair systems.
For smaller applications see our joint cutting and cleanout machines.
FAQs
What are these blades used for?
These blades are used on Contec CT320 and CT340 planers for concrete removal, grooving, and joint preparation.
Can these be used for joint repair?
Yes, they are commonly used for removing failed joints and preparing concrete for new joint systems.
Are these suitable for hard concrete?
Yes, they are designed to perform on high-strength concrete and abrasive aggregates.
Can they be used for precision cutting?
No, these are designed for bulk removal and preparation, not fine cutting.
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 300 × 1 × 300 cm |
| Sizes | 300mm x 3mm, 300mm x7mm, 300mm x8mm, 300mm x7mm Hard Material |
